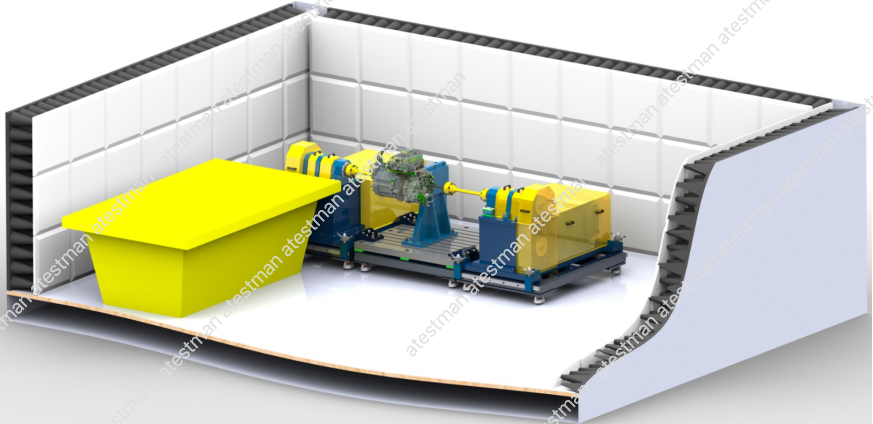

Multi-UUT EMC TB (both sides external load)
The multiple DUT EMC bench (bilateral loading) is a professional testing equipment designed for electromagnetic compatibility (EMC) testing. It can handle the electromagnetic interference of multiple
-Both sides external load device connection, dynamic test available.
-Original e-axle testing, without any changing. Match the real vehicle environment.
-Reasonable load device could fit for multiple UUT test at the same TB. Incl. heavy duty e-motor, light duty e-motor and e-axle.
To meet different testing application scene, we offer varies models and system to full fill market expectation; Mainly as below:
Direct driver system
It provides EMC/EMI testing under real load scene for both commercial vehicles and passengers vehicles; This system aims to provide completed EV testing with minimize electromagnetic waves reflection area; Some of populate model list as shown on below table.
| Type | nmax(rpm) | Trated(N.m) | Prated(kW) | nrtated(rpm) | n2(rpm) | Pmax(kW)@ nmax | Cooling |
|---|---|---|---|---|---|---|---|
| EMD-B300-12-2 | 12000 | 1000 | 300 | 2865 | 12000 | 300 | Air |
| EMD-B300-10-2 | 10000 | 2500 | 300 | 1146 | 7500 | 220 | Air |
| EMD-E370-05-2 | 5000 | 3500 | 370 | 716 | 3000 | 230 | Air |
| EMD-E350-03-2 | 3000 | 5000 | 350 | 670 | 3000 | 350 | Air |
Different parameter Dyno can be used on two sides. It is customized load device depend on UUT study. E.g. 1x2500Nm/10krpm, 1x 5000Nm/3000rpm, with the same inertia. Suit for heavy duty e-motor, light duty e-motor and e-axle.
-Both sides external load device connection, dynamic test available.
-Original e-axle testing, without any changing. Match the real vehicle environment.
-Reasonable load device could fit for multiple UUT test at the same TB. Incl. heavy duty e-motor, light duty e-motor and e-axle.
