E-Axle EMC Test Systems: A Crucial Tool for Electric Vehicle Development

The e-axle, or electric axle, is one of the most important components in an electric vehicle. It combines the electric motor, gearbox, and power electronics into a single, compact unit. This design helps save space, reduce weight, and improve the overall efficiency of the vehicle.

Because the e-axle handles both power and control, it must work reliably in many conditions. It also interacts with other parts of the vehicle’s electronic system. If there is too much electromagnetic interference (EMI), the e-axle might not work properly. This can affect the safety and performance of the vehicle.

For this reason, engineers need to test the e-axle for electromagnetic compatibility (EMC). EMC testing checks if the e-axle creates too much interference or if it can resist interference from other systems. This testing is a critical step in both vehicle development and quality control before production.

Without proper EMC testing, an e-axle may pass early design tests but cause problems when used on the road. That’s why advanced testing tools, such as an EMC test bench, are essential for modern electric vehicle development.

EMC Basics for EVs

EMC stands for Electromagnetic Compatibility . In simple terms, it means that electronic devices can work together without causing problems for each other. In electric vehicles (EVs), this is very important because there are many systems that rely on electricity and signals—such as the battery, motor, sensors, and control units.

If one part gives off electromagnetic interference (EMI), it can affect how other parts work. For example, if the electric motor creates too much EMI, it might disturb the signals sent to the braking or steering system. This could cause safety risks or system failure.

At the same time, components must be strong enough to handle outside interference. This is called electromagnetic susceptibility (EMS). A good EV system must both avoid creating too much EMI and resist EMS from other sources like mobile networks or nearby power lines.

To make sure EVs are safe and reliable, engineers follow strict EMC standards, such as CISPR 25 and ISO 11452-2. These rules set limits on how much EMI is allowed and how much protection is required. Testing the vehicle under these standards helps manufacturers build better and safer electric vehicles.

Challenges in E-Axle EMC Testing

Testing the electromagnetic compatibility (EMC) of an e-axle is more difficult than it may seem. The e-axle is a complex system that combines the electric motor, power electronics, and transmission into one unit. This high level of integration means that many parts are working closely together—and each part can affect the others.

One major challenge is that the e-axle operates at high power and high speed. During testing, it must run under real driving conditions. Engineers need to simulate different loads, speeds, and temperatures. This makes the test setup more complicated and requires advanced equipment.

Another challenge is measuring small electromagnetic signals in the presence of strong noise. Accurate results are important, but the strong electric currents in the e-axle can make it hard to detect weak interference. Engineers must use special sensors and shielding methods to get correct readings.

Finally, not all vehicles use the same type of e-axle. Each model may have different wiring, cooling systems, or control software. This means the test bench must be flexible enough to support different configurations.

Without the right testing tools, it is easy to miss critical problems. That’s why reliable and advanced EMC testing platforms are necessary in every stage of electric vehicle development.

Atestman’s E-Axle EMC Test Bench: A Solution

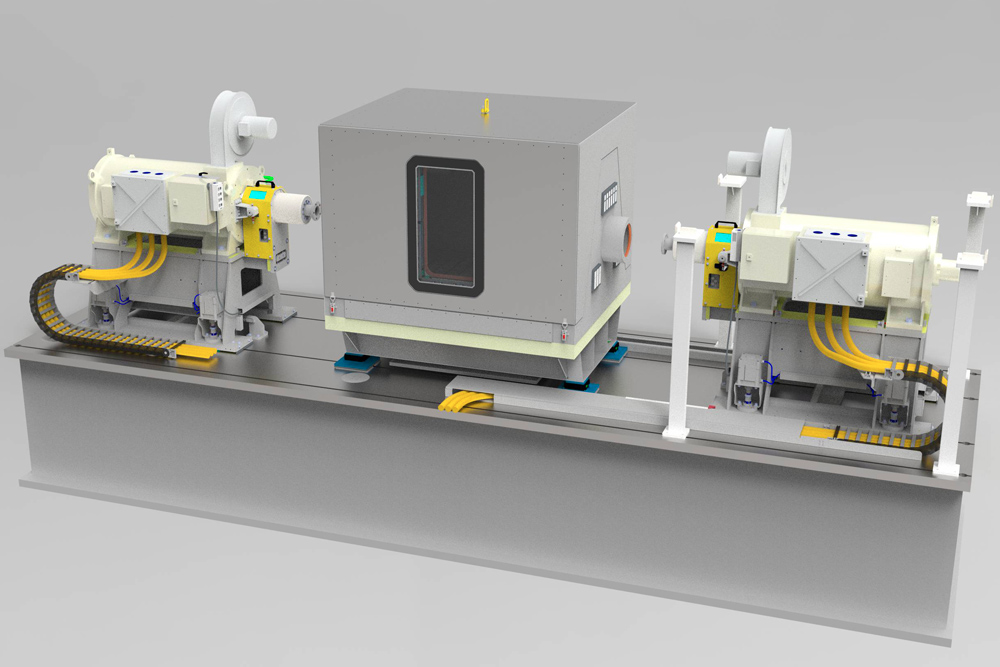

To solve the challenges of e-axle EMC testing, Atestman has developed a smart and flexible testing platform. Their E-Axle EMC Test Bench (Mix) is designed to meet the needs of engineers working in both research and production.

This test bench includes all the main testing functions in one system. It can perform electromagnetic interference (EMI) tests, electromagnetic susceptibility (EMS) tests, and spectrum analysis. It also supports fault diagnosis, which helps engineers quickly find and solve problems.

One key feature is its modular design. The system is built from separate units that can be moved and adjusted. This makes it easy to set up for different e-axle models or test environments. The bench also includes automated software, which controls the tests and records the results. This saves time and improves accuracy.

Another important advantage is the cooling system. The bench supports both water cooling and air cooling, which helps test e-axles under real working conditions without overheating.

Overall, Atestman’s EMC Test Bench provides a complete and reliable solution for testing the performance and safety of electric axles. It helps manufacturers deliver better products to the market, faster and with greater confidence.

Case Applications

Atestman’s E-Axle EMC Test Bench is already being used by several electric vehicle (EV) manufacturers and suppliers. These companies use the test bench during product development, production testing, and quality control.

For example, one EV company used the test bench during the design stage of a new e-axle system. They found unexpected electromagnetic interference that was affecting the control signals. With the help of Atestman’s fault diagnosis tools, their engineers were able to identify the issue and improve the design before mass production.

In another case, a factory used the test bench on their production line. Every e-axle was tested to make sure it met EMC standards. The automatic testing process helped reduce human error and improved testing speed. As a result, the company was able to increase production while keeping quality high.

These real-world examples show how Atestman’s test bench helps companies save time, reduce risks, and deliver more reliable electric drive systems to the market.

Future Trends

As electric vehicles continue to grow in popularity, the demand for advanced EMC testing will also increase. In the future, test benches like Atestman’s will become even more important in helping engineers create safer and smarter e-axles.

One key trend is automation with artificial intelligence (AI). New EMC test systems may use AI to quickly detect patterns, predict problems, and suggest improvements. This will help engineers save time and make better decisions.

Another trend is real-time data sharing. In the future, test benches could connect directly to design software. This would allow test results to update design models instantly, making the development process faster and more accurate.

There is also a push for compact and portable test systems. Smaller, mobile benches will allow engineers to perform EMC testing not only in labs, but also in production areas or even on test tracks.

These trends show that EMC testing is not just a step in the process—it is becoming a key part of innovation in electric vehicles. Tools like Atestman’s E-Axle EMC Test Bench will help drive the future of clean and reliable transportation.
